*FULLY CUSTOMIZABLE FEATURES

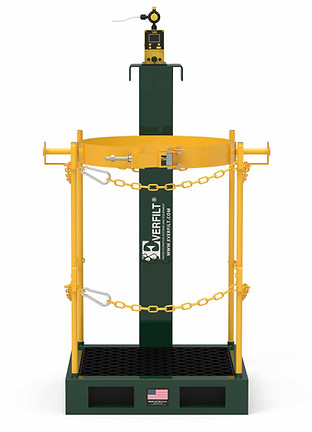

CHEMICAL INJECTION SKIDS
description

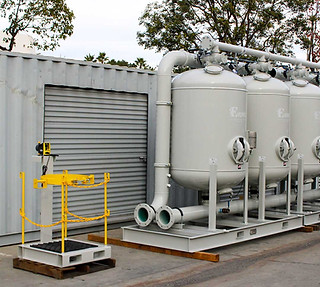

CI-Series Chemical Injection Skids offer customers who require chemical injection a simple turnkey solution, that is both effective and robust as an available standard option. Ideal when in conjunction with an Everfilt® I-Series Iron Removal Filter System. The CI-Series is proven to perform in the toughest of environments, given the carbon steel construction and 2-part epoxy exterior finish in a color of your choice. Integrated spill containment tray provides 11 gallons of storage in the event of a spill. Steel coated safety chain and vertical uprights finished in a bright yellow, provide additional safety precaution.
features
total width: 35.5" [w/lifters]
total height: 60.5" [w/metering pump]
psi: 100 MAX
gpD: 24 min - 42 MAX
CHEMICAL DRUMS: 11-55 [GALLONs]
safety CHAINS: 12FT. [200 lb. test]
METERING PUMP: LMI
COATINGS: 2-PART EPOXY EXTERIOR
lifting steel ring: 1,200 lb. max
ENCLOSURE: AVAILABLE
![Everfilt® CI-Series Chemical Injection Skids](https://static.wixstatic.com/media/57245b_820aa88bde694f7ba02b9518b8468e46~mv2.jpg/v1/fill/w_147,h_196,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/57245b_820aa88bde694f7ba02b9518b8468e46~mv2.jpg)
Everfilt® CI-Series Chemical Injection Skids
![Everfilt® CI-Series Chemical Injection Skids](https://static.wixstatic.com/media/57245b_67f9cdfa826846df8324aee2dbcd1ad0~mv2.jpg/v1/fill/w_147,h_174,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/57245b_67f9cdfa826846df8324aee2dbcd1ad0~mv2.jpg)
Everfilt® CI-Series Chemical Injection Skids
![Everfilt® CI-Series Chemical Injection Skids](https://static.wixstatic.com/media/57245b_3633b8833c7e47b2840e873341e50005~mv2.jpg/v1/fill/w_147,h_190,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/57245b_3633b8833c7e47b2840e873341e50005~mv2.jpg)
Everfilt® CI-Series Chemical Injection Skids
1/3
Select models are subject to change due to customizations or product changes. Contact a representative for more info on a series of interest.
