*FULLY CUSTOMIZABLE FEATURES

STAINLESS STEEL TURBO SCREEN FILTER

description

STB-Series Turbo Screen Filters' self-cleaning and extremely high flow rate characteristics make them the ideal foundation for your application. Available in single or multiple unit configurations capable of flow rates from 170 GPM - 6670 GPM. All STB-Series Turbo Screen Filter housings are constructed from corrosion resistant stainless steel, with easy access closures, ribbed for added collapse strength and durability. Designed in house for long lasting performance and functionality. All STS-Series Turbo Screen Filters are constructed from corrosion resistant stainless steel with easy access enclosure and ribbed for added collapse strength. Each cartridge is engineered to withstand a "DEADHEAD" condition up to maximum operating pressure of its corresponding housing, to eliminate screen blowouts and system contamination. Available in 50, 75, 100, 150 and 200 mesh configurations. Continuous cleaning action is accomplished by opening the flush port valve, that allows 2-5% of the total flow to pass. Each T-Handle style lid allows for easy maintenance and inspection.

features

gpm: 170 - 6670
mesh sizes: 50, 75, 100, 150, 200

psi: 125 MAX
housing: 304SS stainless steel
connections: flanged
canisters: 1 - 2

configurations: manual backwash / continuous flush
options: skid-mounted, carbon steel, 316SS, high-pressure,
custom finishes
Everfilt® STB-Series Turbo Screen Filters
Everfilt® STB-Series Turbo Screen Filters

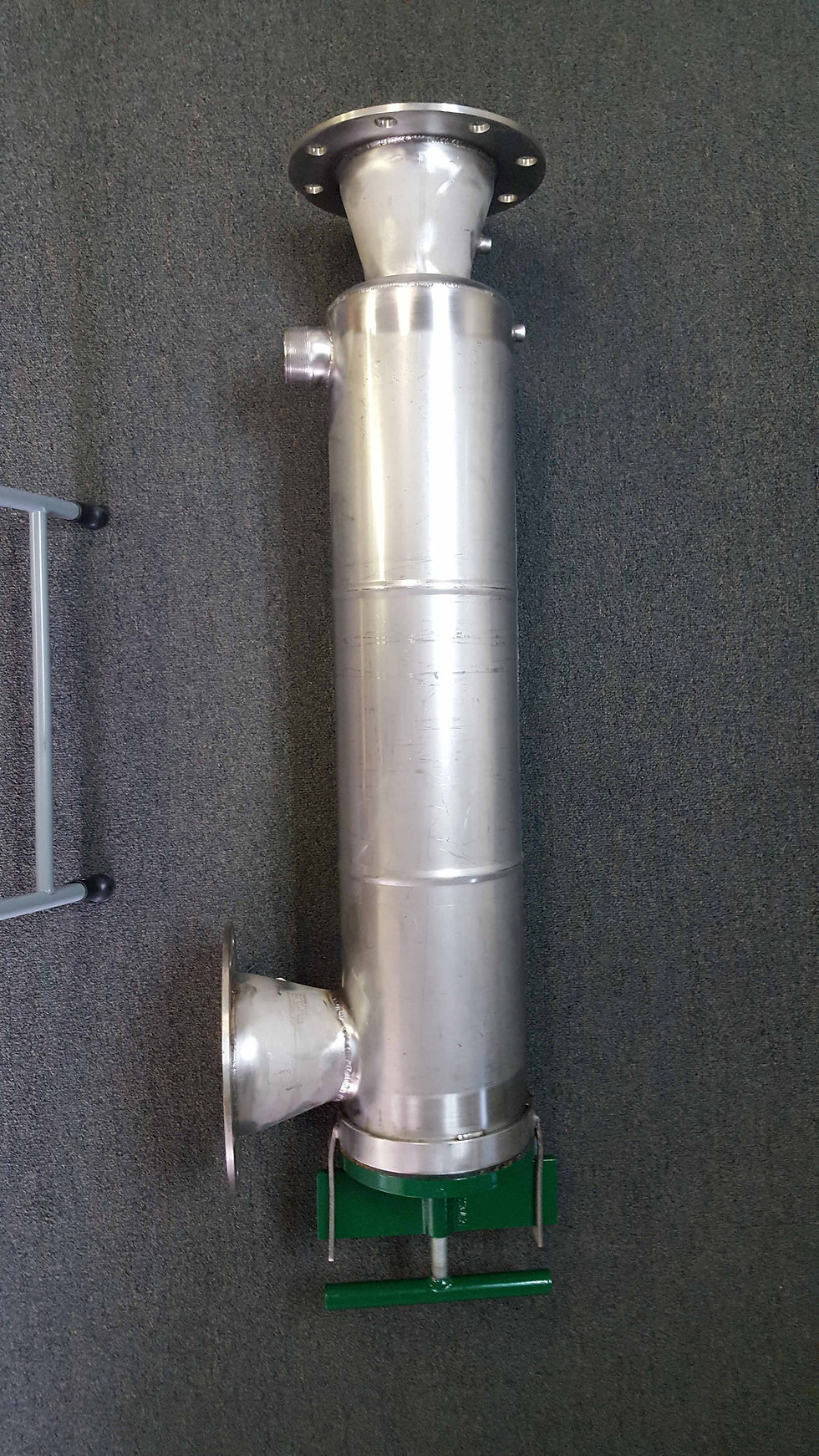

Single-Canister Flanged

press to zoom
Everfilt® STB-Series Turbo Screen Filters
Everfilt® STB-Series Turbo Screen Filters

Single-Canister Flanged

press to zoom
Everfilt® STB-Series Turbo Screen Filters
Everfilt® STB-Series Turbo Screen Filters

Single-Canister Flanged

press to zoom
1/1
Select models are subject to change due to customizations or product changes. Contact a representative for more info on a series of interest.

Contact Everfilt® For A Quote Today.
