*MANUAL & AUTO FLUSHING

CAPABILITIES AVAILABLE

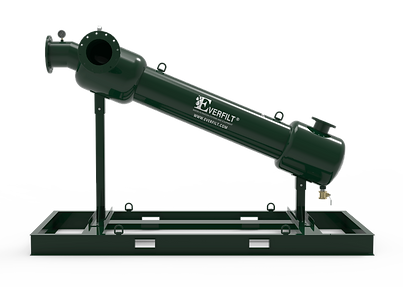

INCLINE SAND SEPARATORS

description

S1-Series Incline Centrifugal Sand Separators are constructed from carbon steel and commonly used when removing suspended solids or organic materials down to 80 microns and rated up-to 150 PSI. Everfilt's industry exclusive 'E-Flow™' design accelerates incoming fluid for better solids separation and maximum performance. Designed around projects where flow rates range from 200-7800 GPM and adaptable features such as fully adjustable legs, flanged lid and carbon steel skids for easy maneuverability. Exterior of sand separator comes in an industrial grade primer and two-part epoxy gloss finish, with UV resistant additive to prolong life and appearance of your system.

features

length: 15I [90"l], 25I [108"l], 35I [120"l], 45I [132"l], 55I [144"l], 65I [144"l], 75I [168"l], 85I [178"l]
PURGE DIA: 15I [2" FPT], 25I [2" FPT], 35I [2" FPT], 45I [2" FPT], 55I [2" FPT], 65I [3" FPT], 75I [3" FPT], 85I [3" FPT]


psi: 150 max
gpm: 15I [200-400], 25I [365-960], 35I [800-1600], 45I [1300-2300], 55I [2025-3400], 65I [2975-5000], 75I [4000-6200], 85I [5000-7800]
sludge capacity: 15I [0.74 GAL], 25I [1.69 GAL], 35I [2.36 GAL], 45I [4.03 GAL], 55I [5.67 GAL], 65I [6.41 GAL], 75I [8.69 GAL], 85I [14.5 GAL]

inl/out dia: 15I [4" FLG], 25I [6" flg], 35I [8" flg], 45I [10" flg], 55I [12" flg], 65I [14" flg], 75I [16" flg], 85I [18" flg]
HIGH-PRESSURE: AVAILABLE
COATINGS: 2-part epoxy exterior / uv-resist
S1-Series Centrifugal Sand Separators (25I Incline Carbon Steel)
S1-Series Centrifugal Sand Separators (25I Incline Carbon Steel)
press to zoom
S1-Series Centrifugal Sand Separators (25I Incline Carbon Steel)
S1-Series Centrifugal Sand Separators (25I Incline Carbon Steel)
press to zoom
S1-Series Centrifugal Sand Separators (25I Incline Carbon Steel)
S1-Series Centrifugal Sand Separators (25I Incline Carbon Steel)
press to zoom
1/4
Select models are subject to change due to customizations or product changes. Contact a representative for more info on a series of interest.
