STANDARD SAND MEDIA FILTER (SS)
description
SSM-Series0 sand media filters are constructed from 10 gauge 304 stainless steel and come equipped with 3-legged construction per tank, one sacrificial anode pert tank, single grooved media fill port (sizes dependent on tank diameter) with carbon steel lid, grooved couplings/gaskets, and a single media drain port. Each SSM-Series0 tank comes standard with 304SS welded wedge wire underdrains (NO PVC or false bottom design), for years of continued use and performance.
features
DIAmeter: 12", 18", 24", 30", 36", 48", 54"
SIDE SHELL height: 18"
psi: 80 [54" - 36"], 100 [30" - 24"], 125 [18" - 12"]
gpm: 15 MIN - 5000+ MAX
ft2: 0.78 [12"], 1.76 [18"], 3.14 [24"], 4.90 [30"], 7.06 [36"], 12.56 [48"], 15.89 [54"]
media: silica sand / gravel
COATINGS: NONE
underdrain: welded 304ss wedge wire
Everfilt® SSM-Series0 Sand Media Filters
14-Tank Sand Media Filter H-Pattern Setup
Everfilt® SSM-Series Sand Media Filters (stainless steel)
Everfilt® SSM-Series Sand Media Filters (stainless steel)
1/5
.png)
SIDE MANWAY SAND MEDIA FILTER (SS)
description
SSM-Series1 sand media filters are constructed from 10 gauge 304 stainless steel and come equipped with 3-legged construction per tank, one sacrificial anode pert tank, single grooved media fill port (sizes dependent on tank diameter) with carbon steel lid, grooved couplings/gaskets and a single media drain port. One side access manway per tank for easy accessibility during inspection or media change out (sizes dependent on tank diameter). Each SSM-Series1 tank comes standard with 304SS welded wedge wire underdrains (NO PVC or false bottom design), for years of continued use and performance.
features
DIAmeter: 12", 18", 24", 30", 36", 48", 54"
SIDE SHELL height: 18"
psi: 80 [54" - 36"], 100 [30" - 24"], 125 [18" - 12"]
gpm: 15 MIN - 5000+ MAX
ft2: 0.78 [12"], 1.76 [18"], 3.14 [24"], 4.90 [30"], 7.06 [36"],12.56 [48"], 15.89 [54"]
MANWAY: 12"T [6"M], 18"T [6"m], 24"T [8"m], 30"T [8"m], 36"T [8"m], 48"T [10"m], 54"T [10"m] T = TANK M = MANWAY
media: silica sand / gravel
COATINGS: none
underdrain: welded 304ss wedge wire
Everfilt® SSM-Series1 Sand Media Filters (stainless steel)
Side Access Manway
Everfilt® SSM-Series1 Sand Media Filters (stainless steel)
Side Access Manway
Everfilt® SSM-Series1 Sand Media Filters (stainless steel)
Side Access Manway
1/2
.png)
DUAL DRAIN PORT SAND MEDIA FILTER (CS)
description
SSM-Series2 sand media filters are constructed from 10 gauge 304 stainless steel and come equipped with 3-legged construction per tank, one sacrificial anode pert tank, single grooved media fill port (sizes dependent on tank diameter) with carbon steel lid, grooved couplings/gaskets and a single media drain port. Dual media drain ports (sizes dependent on tank diameter). Each SSM-Series2 tank comes standard with 304SS welded wedge wire underdrains (NO PVC or false bottom design), for years of continued use and performance.
features
DIAmeter: 12", 18", 24", 30", 36", 48", 54"
SIDE SHELL height: 18"
psi: 80 [54" - 36"], 100 [30" - 24"], 125 [18" - 12"]
gpm: 15 MIN - 5000+ MAX
ft2: 0.78 [12"], 1.76 [18"], 3.14 [24"], 4.90 [30"], 7.06 [36"],12.56 [48"], 15.89 [54"]
drain ports: 12"T [x2], 18"T [x2], 24"T [x2], 30"T [x2], 36"T [x2], 48"T [x2], 54"T [x2] T = TANK x2 = dual drain ports
media: silica sand / gravel
COATINGS: none
underdrain: welded 304ss wedge wire
Everfilt® Sand Media Filters
Everfilt® Sand Media Filters
Everfilt® Sand Media Filters
1/1

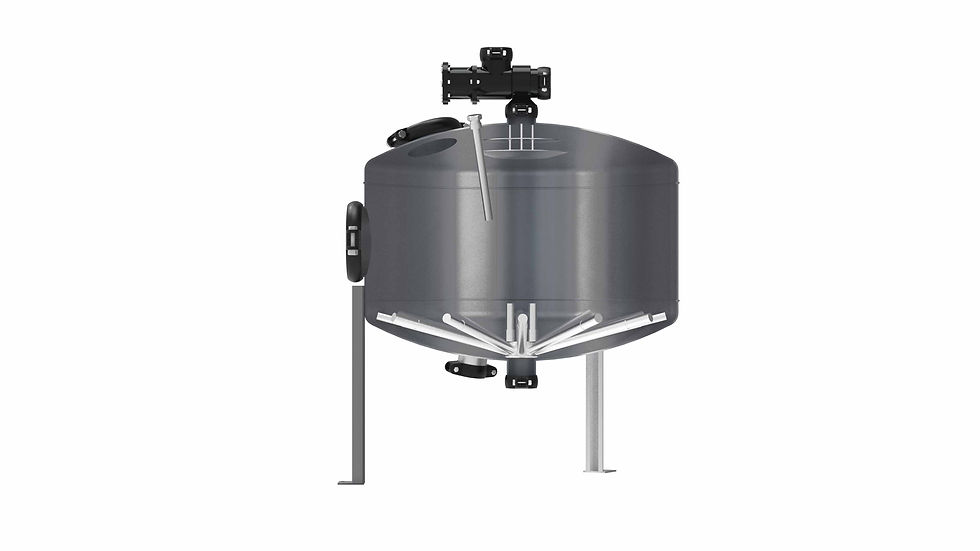

REMOVABLE UNDERDRAIN
SAND MEDIA FILTER (SS)
.png)
description
SSM-Series3 sand media filters are constructed from 10 gauge 304 stainless steel and come equipped with 3-legged construction per tank, one sacrificial anode pert tank, single grooved media fill port (sizes dependent on tank diameter) with carbon steel lid, grooved couplings/gaskets and a single media drain port. One side access manway per tank for easy accessibility during inspection or media change out (sizes dependent on tank diameter). Each SSM-Series3 tank comes standard with removable 304SS welded wedge wire underdrains (NO PVC or false bottom design), for years of continued use and performance.
features
DIAmeter: 12", 18", 24", 30", 36", 48", 54"
side shell height: 18"
psi: 80 [54" - 36"], 100 [30" - 24"], 125 [18" - 12"]
gpm: 15 MIN - 5000+ MAX
ft2: 0.78 [12"], 1.76 [18"], 3.14 [24"], 4.90 [30"], 7.06 [36"],12.56 [48"], 15.89 [54"]
MANWAY: 12"T [6"M], 18"T [6"m], 24"T [8"m], 30"T [8"m], 36"T [8"m], 48"T [10"m], 54"T [10"m] T = TANK M = MANWAY
media: silica sand / gravel
COATINGS: none
underdrain: removable / rebuildable 304SS WEDGE WIRE
Everfilt® Sand Media Filters
Everfilt® Sand Media Filters
Everfilt® Sand Media Filters
1/1
Select models are subject to change due to customizations or product changes. Contact a representative for more info on a series of interest.
