Optimizing Granular Activated Carbon (GAC) Vessel Design for Performance and Efficiency

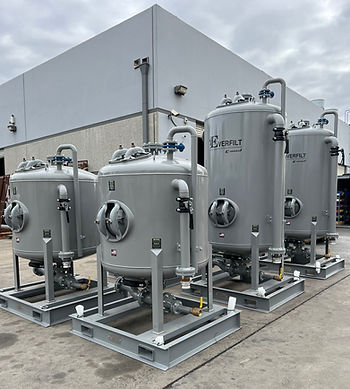

Everfilt® C1-Series Carbon Media Vessels

The market for granular activated carbon (GAC) vessels has experienced significant expansion, leading to increased competition and more competitive pricing. However, this rapid growth has also resulted in market saturation, particularly in regions where the barriers to entry are low. In such a competitive landscape, it is essential to focus on safety, effectiveness, and efficiency in the design and manufacturing of pressure vessels.

Key Considerations in GAC Vessel Design

1. Safety First

Maintaining the structural soundness of pressure vessels is critical. Properly engineered vessels help prevent failures, enhance durability, and extend equipment lifespan.

2. Effectiveness Matters

To maximize contaminant removal, several critical factors must be considered:

Contact time
Service filtration rates
Media volume and density
Freeboard (the space above the media that allows for expansion during backwash cycles)

3. Maximizing Efficiency

Optimizing vessel performance can significantly reduce operational costs and energy consumption. A well-designed system minimizes waste and improves overall process efficiency.

Essential Design & Configuration Considerations

1. Media Loading Strategies

Simply filling a tank and connecting influent and effluent water sources is not enough. A comprehensive approach must be taken, focusing on proper media distribution and flow dynamics.

2. Standardization for Precision

Standardizing vessel capacities based on scientifically precise calculations ensures consistent performance. This includes factoring in contact time, filtration rates, and media requirements.

3. Proper Sizing & Backwashing Requirements

Correctly sizing a GAC vessel is crucial. For systems that require backwashing, it's essential to ensure that flow rates allow for an effective backwash cycle, preventing clogging and performance degradation.

4. Underdrain & Collector Design

A proper underdrain and collector system prevents media loss during backwash cycles and mitigates the risk of media bypass, which can compromise downstream processes. Effective distribution laterals ensure uniform flow, leading to better performance.

Understanding Media Volume & EBCT

To illustrate the importance of vessel design, consider the following example:

A 48-inch diameter vessel with a 72-inch side shell height has the same media capacity as a 72-inch diameter vessel with a 48-inch side shell height.
However, empty bed contact time (EBCT) will vary based on the size and type of GAC used.
The application and desired end results must be carefully evaluated to determine the optimal vessel configuration.

Example Calculation: Carbon Requirements for 10K Vessels

Most 10K GAC vessels on the market require 320 cubic feet of carbon. The weight of the media can vary depending on density:

320 ft³ @ 29.5 lbs/ft³ = 9,440 lbs total
320 ft³ @ 27.5 lbs/ft³ = 8,800 lbs total
Difference: 560 lbs - 1,200 lbs

This variance highlights the need to accurately specify media type and vessel size to achieve optimal results.

Avoiding Common Design Pitfalls

Overfilling units or submerging underdrains and top distribution laterals into the GAC bed can lead to agitation, media channeling, and inefficient filtration. To prevent these issues:

Ensure proper freeboard space for media expansion
Use calculated flow rates to maintain uniform filtration
Design vessels with appropriate underdrain support

Everfilt®: Custom Solutions for Every Project

At Everfilt®, we prioritize delivering high-quality filtration equipment tailored to meet specific project requirements. In today's evolving market, every project is unique, and achieving optimal results requires a customized approach. Our commitment to engineering excellence ensures that our GAC vessels provide superior performance, durability, and efficiency.
